Heating 10,0 kW

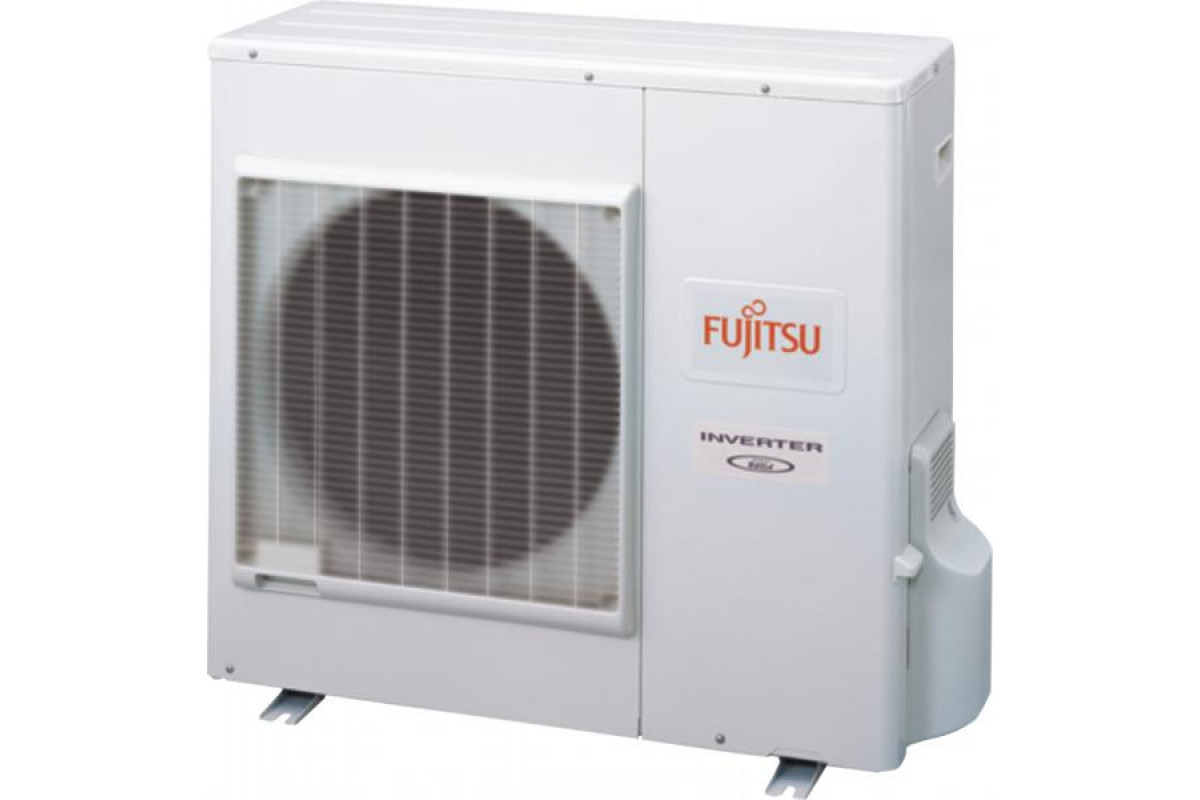

Fujitsu Waterstage WSYA100DD6/WOYA100LDT SPLIT TYPE -20°C Comfort Series.
• Split heat pump system– extremely reliable
• Especially suitable for low temperature application
• Flexible application possibilities
• Progressive and energy-saving inverter technology
• Low operating costs
• Environmentally-friendly thanks to lower CO2 emissions
• Simple installation and operation as quiet as a whisper
• No oil or gas supply and therefore no chimney is required
• built-in electronic protection anode system and immersion heater
• Optional DHW expansion vessel kit
• Optional 2-circuit kit integrated in the device
• Optional boiler connection kit integrated in the device
| Performance | |
| Backup heater, Capacity, kW×pcs | 6,0(3,0 x 2) |
| Low Ambient Heating, °C | -20...+35 |
| +7°C/+35°C floor heating, Heating capacity, kW | 10,00 |
| +7°C/+35°C floor heating, Input power, kW | 2,49 |
| +7°C/+35°C floor heating, COP | 4,02 |
| +2°C/+35°C floor heating, Heating capacity, kW | 7,70 |
| +2°C/+35°C floor heating, Input power, kW | 2,47 |
| +2°C/+35°C floor heating, COP | 3,12 |
| -7°C/+35°C floor heating, Heating capacity, kW | 7,40 |
| -7°C/+35°C floor heating, Input power, kW | 2,23 |
| -7°C/+35°C floor heating, COP | 2,49 |
| +7°C/+45°C radiators, Heating capacity, kW | 8,27 |
| +7°C/+45°C radiators, Input power, kW | 2,53 |
| +7°C/+45°C radiators, COP | 3,27 |
| -7°C/+45°C radiators, Heating capacity, kW | 7,40 |
| -7°C/+45°C radiators, Input power, kW | 3,70 |
| -7°C/+45°C radiators, COP | 2,00 |
| General Feature | |
| Heating. Leaving water temperature range, °C | +8...+55 |
| Water circulation rated/min/max, L/min | 28,88/18,1/36,1 |
| Noise Level Outdoor, dB(A) | 55 |
| Refrigerant | R410A (1,80 kg, >15m + 40g/m) |
| Dimensions and weight | |
| Dimensions indoor WxHxD, mm | 450x800x457 |
| Dimensions outdoor WxHxD, mm | 900х830х330 |
| Weight indoor, kg | 42 |
| Weight outdoor, kg | 60 |
| Мounting Info | |
| Power Source, V/Hz/f | 230/50/1 |
| Electrical connections | to indoor unit, to outdoor unit |
| Current, Outdoor unit, Rated/Max, A | 10,9/18,5 |
| Current, hydraulic unit, Max, A | 26,0 |
| Water pipe connection diameter, Flow/Return, mm | 25,4/25,4 |
| Refrigerant pipe connections, ″ | 3/8-5/8 |
| Max. piping distance horizontal, m | Min/Max 5/20 |
| Max. piping distance vertical, m | 15 |
Fujitsu Waterstage WSYA100DD6/WOYA100LDT
- Brand: Fujitsu
- Product Code: WSYA100DD6/WOYA100LDT
- Availability: In Stock
-
4 637.22€
- Ex Tax: 3 801.00€
