Heating 4,3 (0,8-7,2) kW. The Seasonal Coefficient of Performance in heating SCOP 5,3 Average heating season.
Cooling 3,5 (1,0-4,8) kW. The Seasonal Energy Efficiency Ratio in cooling SEER 9,0.

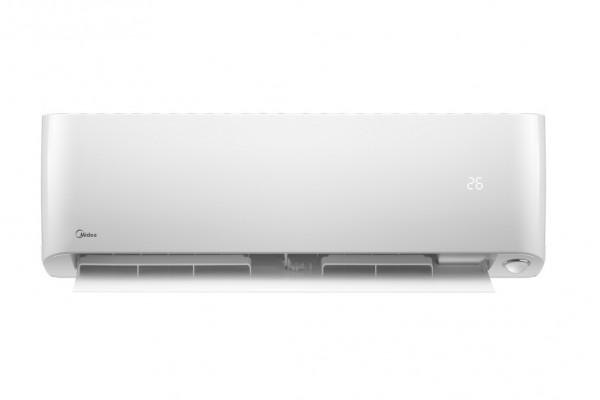

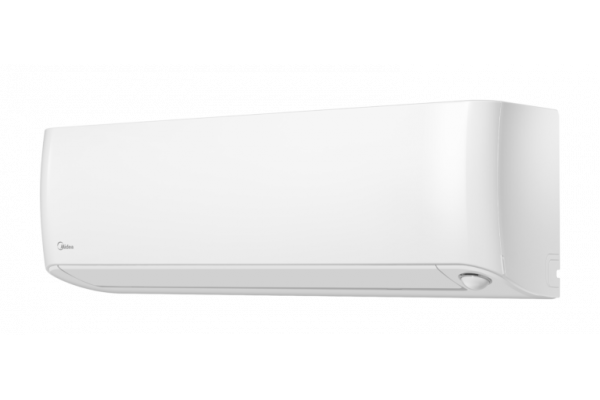

Air to air heat pump Midea Oasis Plus OP 12K MSOPBU-12HRFN8-QRE6GW / MOB30-12HFN8-QRE6GW inverter, integrated WiFi Online Controller
low ambient heating -30°C.





MIDEA SMART KIT
WiFi Smart Kits are designed for even more comfortable and easy operation.

Performance
Energy Class А+++/A+++
Capacity Cooling, kW 3,5 (1,0-4,8)
Capacity Heating, kW 4,3 (0,8-7,2)
Power consumption Cooling, kW 0.10-1.96
Power consumption Heating, kW 0.10-2,63
The Seasonal Energy Efficiency Ratio in cooling SEER 9,0
The Seasonal Coefficient of Performance in heating SCOP 5,30
Cooled area, m² 35
Heated area, m² 40-110
Air circulation, m³/h 230-656
Low Ambient Cooling, °C -25 ... +50
Low Ambient Heating, °C -30 ... +30
General Feature
Communication channel Smart Kit SK102 WiFi USB Online Controller
Noise Level Indoor, dB(A) 21-45
Noise Level Outdoor, dB(A) 57
Cooling. Indoor temperature setting range, °C 17-30
Heating. Indoor temperature setting range, °C 17-30
Low temperature keeping function, min °C +8
Autorestart +
Timer +
Wireless remote Control +
Compressor Inverter
Refrigerant R32 (0,870 kg) >5m + 12g/m
Outdoor unit frost protection +
Dimensions and weight
Dimensions indoor WxHxD, mm 895x298x248
Dimensions outdoor WxHxD, mm 800x554x333
Weight indoor, kg 13
Weight outdoor, kg 37
Мounting Info
Power Source, V/Hz/f 230/50/1
Electrical connections to outdoor unit
Power cable 3x2,5
Signal cable 5x1,5
Refrigerant pipe connections, ″ 1/4 - 3/8
Max. piping distance horizontal, m min 3, max 25
Max. piping distance vertical, m 10
Warranty
Warranty for devices, months 24
Installation warranty, months 24

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Air to air heat pump Midea Oasis Plus OP 12K

  • Brand: Midea
  • Product Code: Midea Oasis Plus OP 12K
  • Availability: Out Of Stock
  • 1 250.50€

  • Ex Tax: 1 025.00€
