Heating 6,45 (2,30-8,50) kW, el. 1,91 (0,40-4,00) kW
Cooling 6,45 (2,20-7,00) kW, el. 1,94 (0,45-3,05) kW
Inverter, low ambient heating -25°C ... +24°C and cooling -25°C ... +43°C.
SALE - offer valid while stocks last!
| Performance | |
| Energy Class | А+/A |
| Capacity Cooling, kW | 6,45 (2,20-7,00) |
| Capacity Heating, kW | 6,45 (2,30-8,50) |
| Power consumption Cooling, kW | 1,94 (0,45-3,05) |
| Power consumption Heating, kW | 1,91 (0,40-4,00) |
| Energy Efficiency Cooling (+35 °C) EER | 3,21 |
| The Seasonal Energy Efficiency Ratio in cooling SEER | 5,80 |
| Energy Efficiency Heating (+7 °C) COP | 3,21 |
| The Seasonal Coefficient of Performance in heating SCOP | 3,80 |
| Cooled area, m² | 70 |
| Heated area, m² | 50-140 |
| Air circulation, m³/h | 1000/800/700/600 |
| Low Ambient Cooling, °C | -30 ~ +43 |
| Low Ambient Heating, °C | -30 ~ +24 |
| General Feature | |
| Noise Level Indoor, dB(A) | 50/45/39/36 |
| Noise Level Outdoor, dB(A) | 58 |
| Cooling. Indoor temperature setting range, °C | 16-30 |
| Heating. Indoor temperature setting range, °C | 16-30 |
| Low temperature keeping function, min °C | +8 |
| Autorestart | + |
| Timer | + |
| Wireless remote Control | + |
| Compressor | Inverter |
| Refrigerant | R410a (2,000 kg) |
| Outdoor unit frost protection | + |
| Dimensions and weight | |
| Dimensions indoor WxHxD, mm | 1018x315x223 |
| Dimensions outdoor WxHxD, mm | 980x790x427 |
| Weight indoor, kg | 15,5 |
| Weight outdoor, kg | 63 |
| Мounting Info | |
| Power Source, V/Hz/f | 230/50/1 |
| Electrical connections | to outdoor unit |
| Power cable | 3x2,5 |
| Signal cable | 4x2,5 |
| Rated current Cooling, A | 9,00 |
| Rated current Heating, A | 9,00 |
| Maximum current, A | 12,2 |
| Refrigerant pipe connections, ″ | 1/4 - 5/8 |
| Max. piping distance horizontal, m | 25 |
| Max. piping distance vertical, m | 10 |
| Warranty | |
| Warranty for devices, months | 24 |
| Installation warranty, months | 24 |

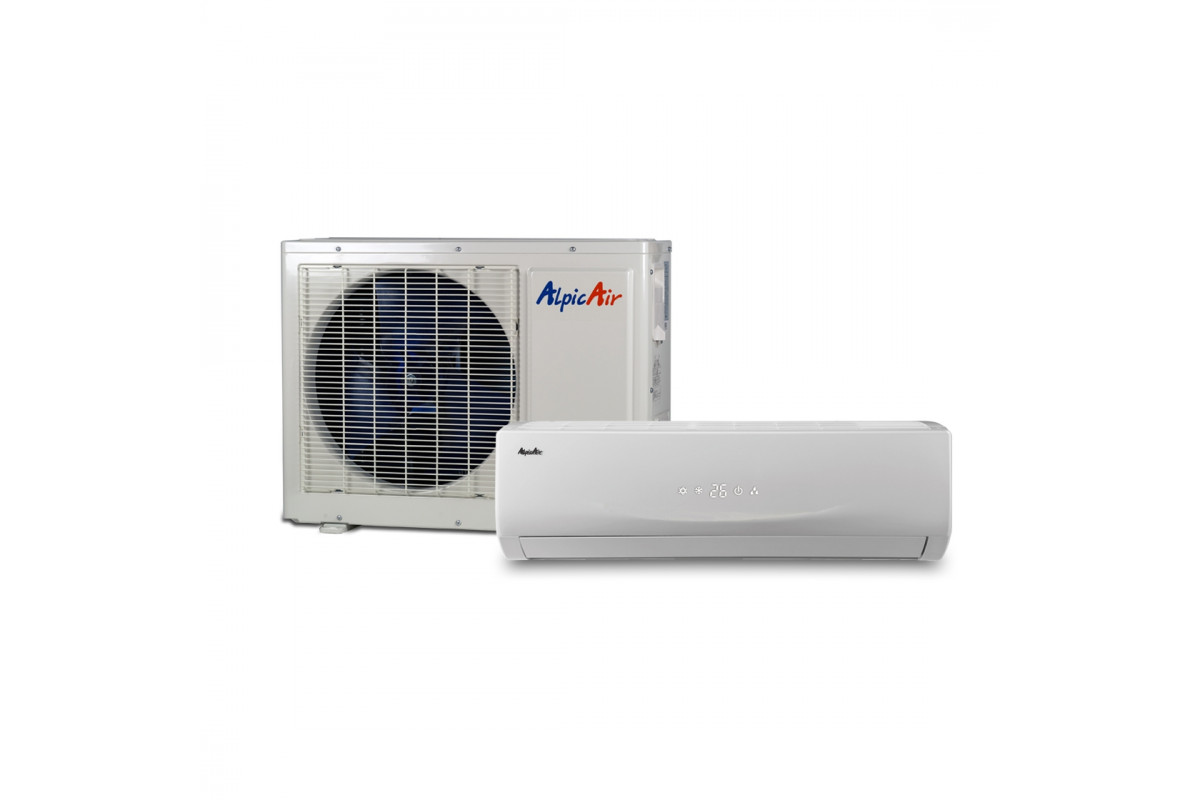

AlpicAir AWI/AWO-70HPDC1B Inverter
- Brand: AlpicAir
- Product Code: AWI/AWO-70HPDC1B Inverter
- Availability: No longer provide
-
1 030.90€
- Ex Tax: 845.00€
