Cooling 14,10 (4,8-14,6) kW, el. 5,10 (1,2-5,6) kW
Heating 16,10 (3,9-16,8) kW, el. 5,10 (1,0-5,4) kW

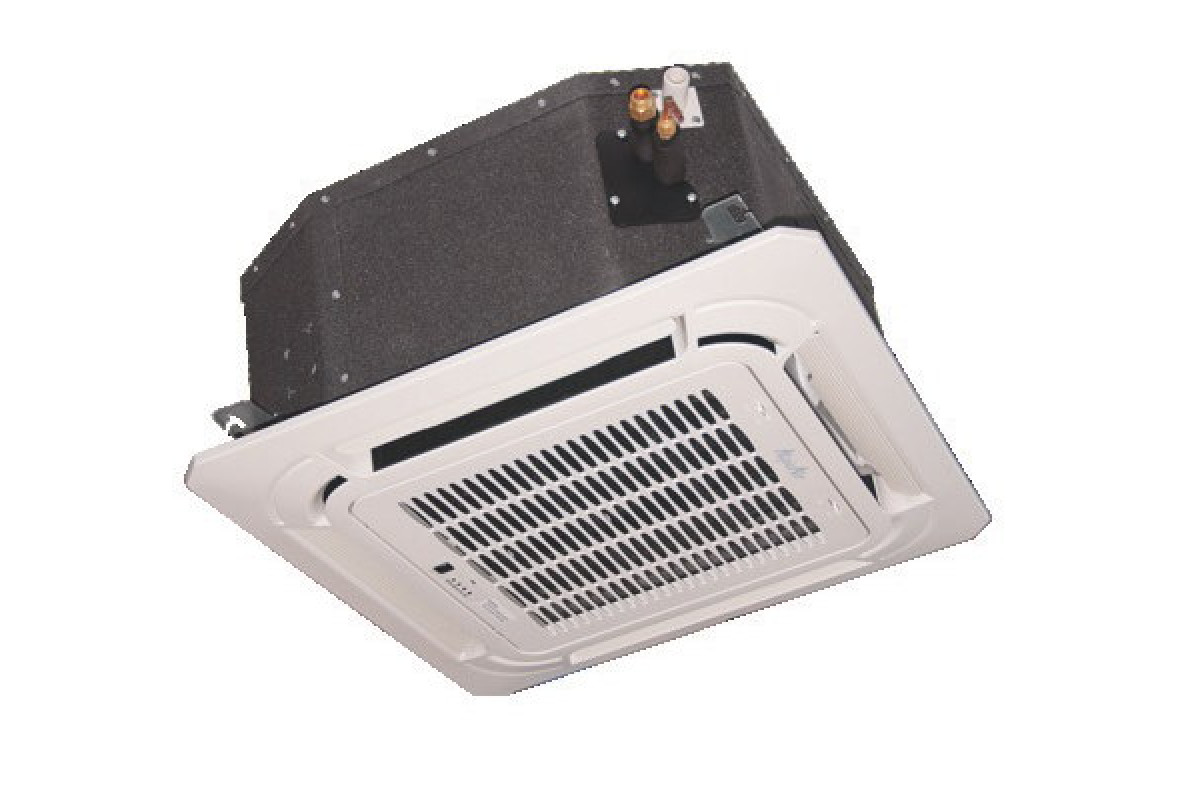

Cassette type AlpicAir
ACI-140HPDC3C/AOU-140HRDC3

AlpicAir cassette type split type units will provide quiet performance through innovative design. The cassette is extremely suitable for any room, and can be easy installed in suspended ceilings with only a discreet decorative discharge grille visible. Equipped with reliable internal condensate pump. Powered by energy efficient inverter and a variable speed compressor.
- Auto-restart function
- Turbo mode
- Timer
- Low ambient cooling
- 360° air flow
- Louver position memory

Performance
Capacity Cooling, kW 14,10 (4,8-14,6)
Capacity Heating, kW 16,10 (3,9-16,8)
Power consumption Cooling, kW 5,10 (1,2-5,6)
Power consumption Heating, kW 5,10 (1,0-5,4)
Energy Efficiency Cooling (+35 °C) EER
The Seasonal Energy Efficiency Ratio in cooling SEER 6,1
Energy Efficiency Heating (+7 °C) COP
The Seasonal Coefficient of Performance in heating SCOP 4,0
Cooled area, m² 140
Heated area, m² 160-320
Air circulation, m³/h 1715/1568/1381
Low Ambient Cooling, °C -15 ~ +450
Low Ambient Heating, °C -15 ~ +24
General Feature
Noise Level Indoor, dB(A) 52/50/49
Noise Level Outdoor, dB(A) 66
Low temperature keeping function, min °C
Autorestart +
Timer +
Wireless remote Control +
Compressor inverter
Refrigerant R32 (2,800 kg)
Additionally Winter kit for cooling to -15°C
Dimensions and weight
Dimensions indoor WxHxD, mm 840x287x840 with panel: 950x55x950
Dimensions outdoor WxHxD, mm 952x1333x415
Weight indoor, kg 29+5
Weight outdoor, kg 106,7
Мounting Info
Power Source, V/Hz/f 380-415/50/3
Electrical connections to outdoor unit
Power cable 5x2,5
Signal cable 4x1,5
Rated current Cooling, A
Rated current Heating, A
Maximum current, A
Refrigerant pipe connections, ″ 3/8 - 5/8
Max. piping distance horizontal, m 65
Max. piping distance vertical, m 30
Warranty
Warranty for devices, months 24
Installation warranty, months 24
